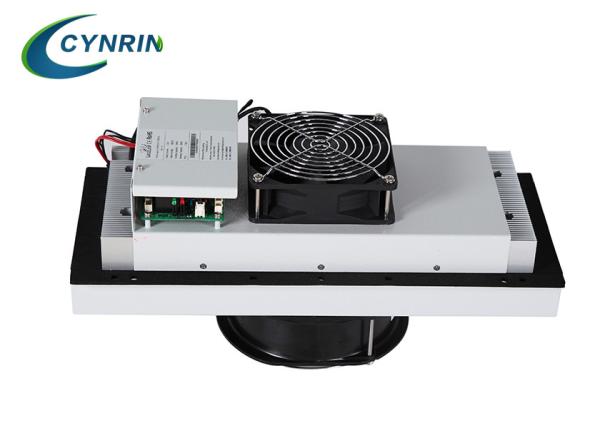

200W Peltier thermoelectric Air Conditioner for Electronics Enclosures, Telecommunications Equipment and Battery Boxes

Product Characteristic

The LCT-200ED provides high cooling capacity in a narrow package. The overall dimensions are compact making it easy to get significant cooling capacity in a small space. The cooler is powered by 220 AC and is rated to maintain the enclosure’s NEMA 4 rating. The LCT-200ED is protected against harsh environments via an anodized external heat sink, stainless steel hardware, and an IP-68 rated external fan. The external fan is also speed controllable and has a tachometer output signal. Like all cooling assemblies from TE Technology (and unlike many coolers from competitive companies) the thermoelectric/Peltier elements have our epoxy potting and the assembly is sealed to reduce moisture ingress inside the cooler.

The LCT-200ED can also be used for heating, and two over-temperature thermostats are incorporated in the cooler (one on each set of fins). The thermostats are intended to provide a separate means of over-temperature protection for the cooler and equipment and can be monitored via the interlock feature on a temperature controller or used to control the output inhibit line on a power supply. Please note these thermostats are NOT intended as a means of temperature control for the cooler or for direct switching of high-current loads.

Peltier Air Conditioner Features

• High Capacity: Removes 200 W of heat in a 35 °C ambient at a 0 °C temperature difference.
• Narrow 150 mm (5.9″) overall width.
• Protected against harsh environments — meets NEMA 4 and IP68 (external fan) specifications.
• Powered by 220 VDC,other voltage is available.
• All wiring is accessible from inside the enclosure.
• Internal fan blows air into the center of the enclosure so cooled air can be aimed at components that need the most cooling.
• Cools up to 44 °C below ambient in a 25 °C environment.
• Can be used for heating and cooling (requires heat/cool controller).
• Over-temperature thermostats included on both fin sets (signal level only).
• Operating temperature range is -20°C to +70 °C.
• External fan can be speed controlled with the TC-720 temperature controller for improved efficiency and/or reduced noise.
• External fan has a tachometer output signal.
• CE marked and RoHS compliant.

Specifications

DC air conditioner details show

Application

FAQ

1. Q: How about the air cooler material?

A: It makes by 100% new plastic, pure copper for motor.

2. Q: What voltages you can do, could you make special voltages?

A: we can make DC48 and all AC voltage products for you.

3. Q: I want to use our own brand, is it OK?

A: It is possible, we supply the OEM products too.

4. Q: How about the warranty?

A: All the unit warranty is one year.

Cynrin is focus on supplying the cooling solution for telecom & industry and related parts .From materials and product design to applications, we aim to deliver solutions that save energy, more convenient , more safety of your productions.

The company has passed ISO9001/14001 quality certification, the company production base is located in Wuxi Hongshan Town, has a modern office area and production lines and perfect inspection procedures, production capacity of about 10 million units of temperature control products; products are widely used in telecommunications, electricity, industrial automation and other fields, and successfully expand foreign markets, were established partner and customer service service outlets in Japan, the Middle East, Germany etc...

Our production process strictly follow the ISO9001 system to make sure the quality.
