Brand Name : | CYNRIN |
Model Number : | CSA025RA |
Certification : | CE |
Price : | USD1499.00~3999.00 unit |
Payment Terms : | T/T, D/A, D/P, L/C, Western Union, MoneyGram |
Supply Ability : | 80000 sets per year |
Delivery Time : | 7 work days after payment |
Product Characteristic
As the power density increases in modern data centers, traditional
precision cooling fails to provide complete cooling for the
following situations:

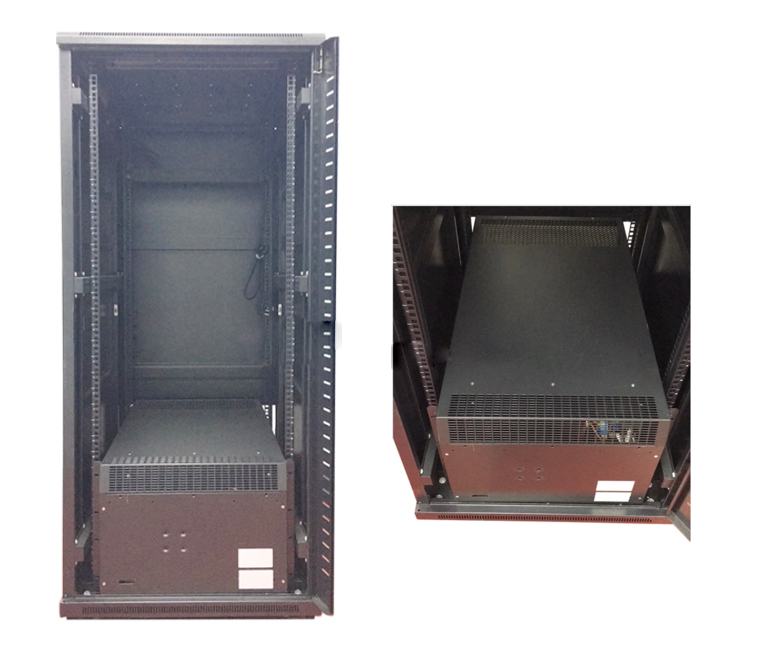

The smart type air conditioner can effectively solve the above problems. Her power supply can be from 100VAC to 240VAC, focus on mini-ICT room heat management, which also widely used for small scade IT equipment cooling for middle size of enterprises etc.

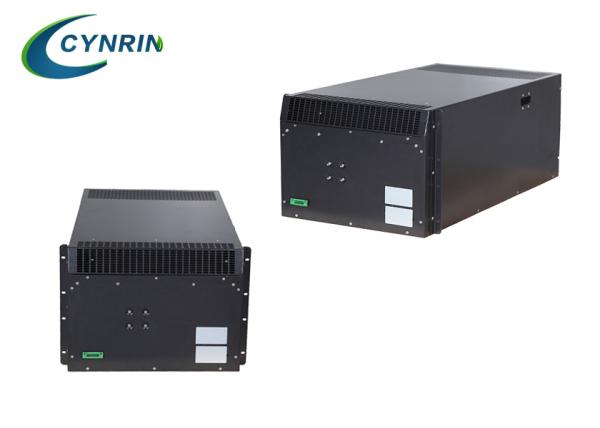

Product Type | RACK-EMBEDDED COOLING |
Model No. | CSA025RA |
Extemal Dimensions(W*D*H) | 483*840*355mm |
Extemal Dimensions(W*D*H) without flange | 440*840*355mm |
Weight | 42Kg |
Working Temperature range | -15 ℃ to +55 ℃ |
Noise Level | 65dB(A) |
Refrigerant | R134a |
Cooling Capacity @ L35/L35 | 2500W |
Heating Capacity | - |
Rated power @ L35/L35 | 200W |
Rated Voltage | 220AC+-15% 50/60Hz |
Interal Airflow | 800m3/h |
IP grade | IP 55 |
Model | Mounting method | Input voltage | Dimensions (Without flange)mm | Cooling capacity | Certification |
LSA035FA | Split | AC 220V | 220*440*580mm | 3500 | CE,CCC |
LSA035LA | / | 365*440*940mm | 3500 | CE,CCC | |
LSA050FA | Split | indoor:2000*300*850mm | 5000 | CE | |
LSA080FA | Split | indoor:2000*300*850mm | 8000 | CE |
![]() |
