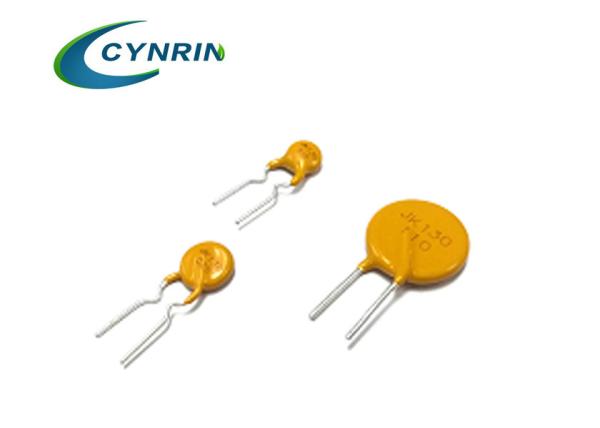

Automatic DIP 130V series 0.1A to 2.5A Over Current Protection
Polymer PTC resettable fuse
Product Information
The 130V radial leaded type resettable pptc thermal fuse is a widly
current range fuse, there are over 20 models in this series,
operation current is from 0.1A to 2.5A. Lead is free by customize.
1. Electrical parameters
| Model | Ihold(A) | Itrip(A) | VMAX(V) | IMAX(A) | Pd (W) | Maximum Time-to-trip | Resistance(Ω) |
| Current (A) | Time(S) | RMIN- RMAX |
| JK130-010 | 0.10 | 0.20 | 130 | 3 | 0.8 | 0.5 | 6 | 2.5-9.0 |
| JK130-015 | 0.15 | 0.30 | 130 | 3 | 0.8 | 0.75 | 05.5 | 2.5-7.5 |
| JK130-017 | 0.17 | 0.34 | 130 | 3 | 0.8 | 0.85 | 5.2 | 1.5-7.0 |
| JK130-020 | 0.20 | 0.40 | 130 | 3 | 0.8 | 1.0 | 5.0 | 1.9-4.0 |
| JK130-025 | 0.25 | 0.5 | 130 | 3 | 1.0 | 1.25 | 4.8 | 1.45-3.50 |
| JK130-030 | 0.30 | 0.6 | 130 | 3 | 1.0 | 1.5 | 4.5 | 1.0-3.0 |
| JK130-040 | 0.40 | 0.8 | 130 | 3 | 1.0 | 2.0 | 4.5 | 0.75-2.0 |
| JK130-050 | 0.50 | 1.0 | 130 | 3 | 1.0 | 2.5 | 5.0 | 0.50-1.60 |
| JK130-065 | 0.65 | 1.3 | 130 | 10 | 1.0 | 3.25 | 5.2 | 0.45-1.0 |
| JK130-075 | 0.75 | 1.5 | 130 | 10 | 1.0 | 3.75 | 5.5 | 0.4-0.9 |
| JK130-090 | 0.90 | 1.8 | 130 | 10 | 1.5 | 4.5 | 5.8 | 0.3-0.7 |
| JK130-110 | 1.10 | 2.2 | 130 | 10 | 1.8 | 5.5 | 6.3 | 0.20-0.65 |
| JK130-135 | 1.35 | 2.7 | 130 | 10 | 1.8 | 6.75 | 7.5 | 0.15-0.60 |
| JK130-160 | 1.60 | 3.2 | 130 | 10 | 2.0 | 8.0 | 8.5 | 0.1-0.50 |
| JK130-185 | 1.85 | 3.7 | 130 | 10 | 2.0 | 9.0 | 9.25 | 0.1-0.40 |
| JK130-200 | 2.0 | 4.0 | 130 | 10 | 2.2 | 10.0 | 10 | 0.1-0.3 |
| JK130-250 | 2.5 | 5.0 | 130 | 10 | 2.5 | 12.5 | 12 | 0.05-0.25 |
IH=Hold current:maximumcurrent at which the device will not trip at
25℃ still air.
IT=Trip current:minimumcurrent at which the device will nalways at
25℃ still air.
Vmax=Maximum voltagedevice can withstand without damage at rated
current.
Imax=Maximum faultcurrent device can withstand tithout damage at rated
voltage.
Ttrip=Maximum time totrip(s) at assigned current.
Pd=Typical powerdissipation:typical amount of power dissipated by the
decice when in state airenvironment.
Rmin=Minimum deviceresistance at 25℃ prior to tripping.
Rmax=Maximum deviceresistance at 25℃ prior to tripping.
2. Dimension Details
3. Thermal Derating Chart-IH(A)
| Model | Maximum ambient operating temperature(℃) |
| -40℃ | -20℃ | 0℃ | 25℃ | 30℃ | 40℃ | 50℃ | 60℃ | 70℃ | 85℃ |
| JK130 series | 147% | 132% | 118% | 100% | 90% | 85% | 76% | 67% | 60% | 47% |
Product Application
This type named as Resettable Fuse PPTC DIP JK130 Series is widely
used in computers&peripherals,toys,general electronics,any USB
application,etc.
