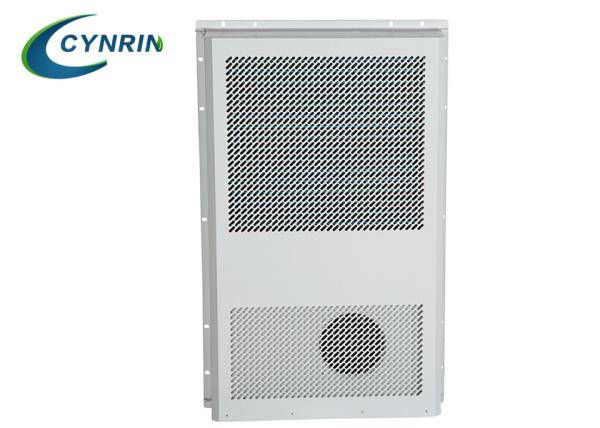

LCD outdoor Electric Cabinet Totem Air Conditioner ,600W industrial
air conditioner
Product Characteristic
Cynrin CCA00XEA Electric Cabinet Air Conditioner is a fully automatictemperature control equipment products, the
product uses the intelligent controller to control the entire
systemproducts, intelligent controller based on the change of
environmental temperature and automaticdetection, automatic
operation,and record the entire system uptime, power consumption,
event and historical data, can store 100 event records, 1280
historical data records,can inquiry log information of 256 days.
The productsused in communications cabinets, small room, UPS room,
Outdoor LCD Totem, etc.
Product Features
- Remote measuring,remote communication,remote control,which can
realize multiple automatic protection and comprehensive
self-testing function;
- Strict process control and international brand parts deployed to
ensure high quality and reliable of this product;Unique energy-saving & control technology;
- Fit for T3 high temperature working condition by using of R134a
refrigerant gas;
- Multiple seIf-protection design & visible monitoring
interface,RS422 I RS485
- communication port (MODBUS-RTU protocol);
- LED display,all the settings can be changed at the field;
- The heating function is optional;
- Dry contact alarm output,NO/NC optional;
- Anti-theft design,without the protection cover
Please note that the parameters provided below are for guidance
only.
OEM /ODM are acceptable.Welcome to share your opinion with us.
| Product mode | CCA006EA | Unit |
| Dimensions(Without flange) | 352*175*583mm | mm |
| Weight | 20 | kg |
| Mounting method | Embedded | |
| Application temperature | -40-70 | ℃ |
| Working temperature | -15-55 | ℃ |
| Input voltage | 48VDC or AC 220V±15% 60Hz | |
| Cooling capacity L35/L35 | 600 | W |
| Heating | 500 | W |
| Power consumption L35/L35 | 160 | W |
| Airflow | 160m³/h | m3/h |
| IP grade | IP 55 | |
| Refrigerant | R134A | |
| Noise | 60 | dB (A) |
| Surface treatment | RAL7035 | |
Other standard Models
| Cooling Capacity(L35/L35) | Product Model | Mounting Method | Dimension(W*D*H)mm | Dimension(W*D*H)mm Without flange | IP | Noise (dB A) | Certification |
| 300W | CCA003EA | Side- Embedded | 352*175*583 | 315*175*546 | 55 | 60 | CE,CCC |
| 400W | CCA004EA | Side-Embedded | 352*175*583 | 315*175*546 | 55 | 60 | CE,CCC |
| 500W | CCA005EA | Side-Embedded | 352*175*583 | 315*175*546 | 55 | 60 | CE,CCC |
| 600W | CCA006EA | Side-Embedded | 352*175*583 | 315*175*546 | 55 | 60 | CE,CCC |
| 800W | CCA008EA | Side-Embedded | 482*175*782 | 445*175*745 | 55 | 65 | CE,CCC |
| 1000W | CCA010EA | Side-Embedded | 482*175*782 | 445*175*745 | 55 | 65 | CE,CCC |
| 1300W | CCA013EA | Side-Embedded | 482*200*782 | 445*200*745 | 55 | 65 | CE,CCC |
| 1500W | CCA015EA | Side-Embedded | 482*200*782 | 445*200*745 | 55 | 65 | CE,CCC |
| 2000W | CCA020EA | Side-Embedded | 482*200*782 | 445*200*745 | 55 | 65 | CE,CCC |
| 2300W | CCA023EA | Side-Embedded | 482*200*782 | 445*200*745 | 55 | 65 | CE,CCC |
| 2500W | CCA025EA | Side-Embedded | 536*225*1201 | 485*225*1150 | 55 | 65 | CE,CCC |
| 3000W | CCA030EA | Side-Embedded | 536*225*1201 | 485*225*1150 | 55 | 65 | CE,CCC |
| 3500W | CCA035EA | Side-Embedded | 550*300*1350 | 500*300*1300 | 55 | 65 | CE,CCC |
| 4000W | CCA040EA | Side-Embedded | 550*300*1350 | 500*300*1300 | 55 | 65 | CE,CCC |
| 5000W | CCA050EA | Side-Embedded | 650*300*1350 | 650*300*1300 | 55 | 65 | CE,CCC |
| 7500W | CCA075EA | Side-Embedded | 711*350*1660 | 650*350*1600 | 55 | 65 | CE,CCC |
Electrict Enclosure Air Conditioner details show
Dimension Diagram:
Installation Diagram
Application
This Electric Panel Cabinet air conditioner can be widely used in
enclosed area for climate control,such as telecom cabinet,battery cabinet,industry control cabinet etc.
● Indoor and Outdoor Hybrid Base station
● Indoor and Outdoor Battery Cabinet
● Wireless Indoor and Outdoor Cabinet
Packaging & Delivery
FAQ
1. Q: How about the air cooler material?
A: It makes by 100% new plastic, pure copper for motor.
2. Q: What voltages you can do, could you make special voltages?
A: we can make DC48 and all AC voltage products for you.
3. Q: I want to use our own brand, is it OK?
A: It is possible, we supply the OEM products too.
4. Q: How about the warranty?
A: All the unit warranty is one year.
