300W-4000W DC Air Conditioner for Industry
Product Characteristic
The DC series Air conditioner power supply is 48VDC, mainly used
for industry field cabient climate control. using environmental
friendly refrigerant R134A, close loop cooling protects equipment
from ambient environment, with adjustable indoor temperature set
point from 20-40 degree ventiation not recommend any more since the
system highest efficiency. Adaptable for T3 condition which up to
55 degree tropic area.
Product Advantage
● -48VDC power input
● 300-4000W cooling capacity (L35L35)
● Door mounted – easy integration in outdoor cabinets
● Optional configured with heater
● Wide working temperature range: -40ºC to +55 ºC
● Energy saving
● Lifetime >10 years – minimum maintenance
● Environmental friendly – R134a and RoHS compliant
● Resistant to corrosive environments – IP55 and Salt fog tested
● RS485 for remote control
● Soft start
● Easy installed that one person can finish the work
● Low noise to 45dB
● Multi-Function alarm output.
● High energy efficiency reach 4.5.
Application
● Indoor and Outdoor Hybrid Base station
● Indoor and Outdoor Battery Cabinet
● Wireless Indoor and Outdoor Cabinet
Specifications
| Cooling Capacity(L35/L35) | Product Model | Mounting Method | Dimension(W*D*H)mm | Dimension(W*D*H)mm Without flange | IP | Noise (dB A) | Certification |
| 300W | CCA003ED | Side- Embedded | 181*200*400 | 181*200*400 | 55 | 60 | CE,CCC |
| 300W | CCA003SD | Side | 240*150*400 | 240*150*400 | | | |
| 500W | CCA005ED | Side-Embedded | 352*175*583 | 315*175*546 | 55 | 65 | CE,CCC |
| 600w | CCA006ED | Side-Embedded | 352*175*583 | 315*175*546 | | | |
| 800W | CCA008ED | Side-Embedded | 482*175*782 | 445*175*745 | 55 | 65 | CE |
| 1000W | CCA010ED | Side-Embedded | 482*175*782 | 445*175*745 | 55 | 65 | CE |
| 1500W | CCA015ED | Side-Embedded | 482*200*782 | 445*200*745 | 55 | 65 | CE |
| 2000W | CCA020ED | Side-Embedded | 482*200*782 | 445*200*745 | 55 | 65 | CE |
| 2500W | CCA025ED | Side-Embedded | 536*225*1201 | 485*225*1150 | 55 | 65 | CE |
| 3000W | CCA030ED | Side-Embedded | 536*225*1201 | 485*225*1150 | 55 | 65 | CE |
| 3500W | CCA035ED | Side-Embedded | 550*300*1350 | 500*300*1300 | 55 | 65 | CE |
| 4000W | CCA040ED | Side-Embedded | 550*300*1350 | 500*300*1300 | 55 | 65 | CE |

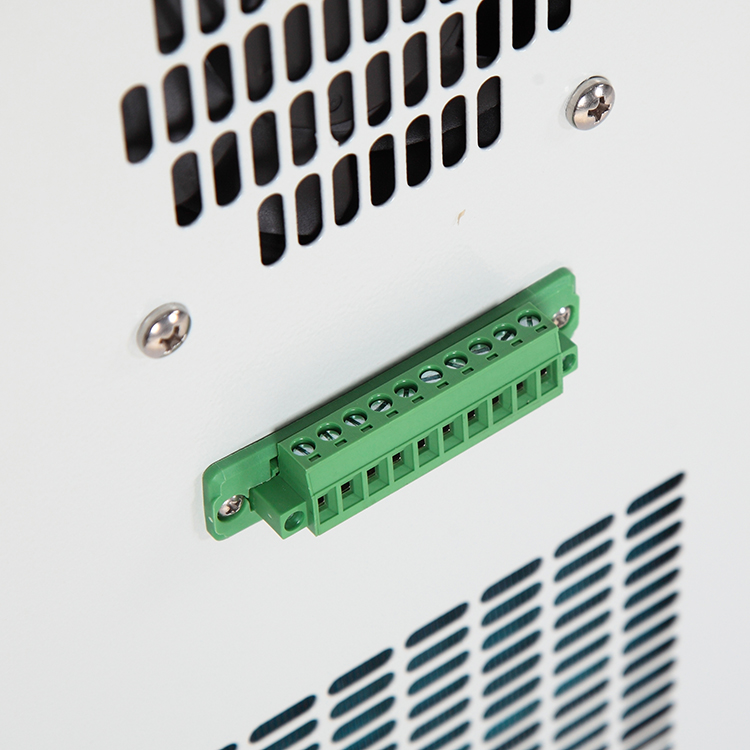

AC air conditioner details show
Certifications
Factory
